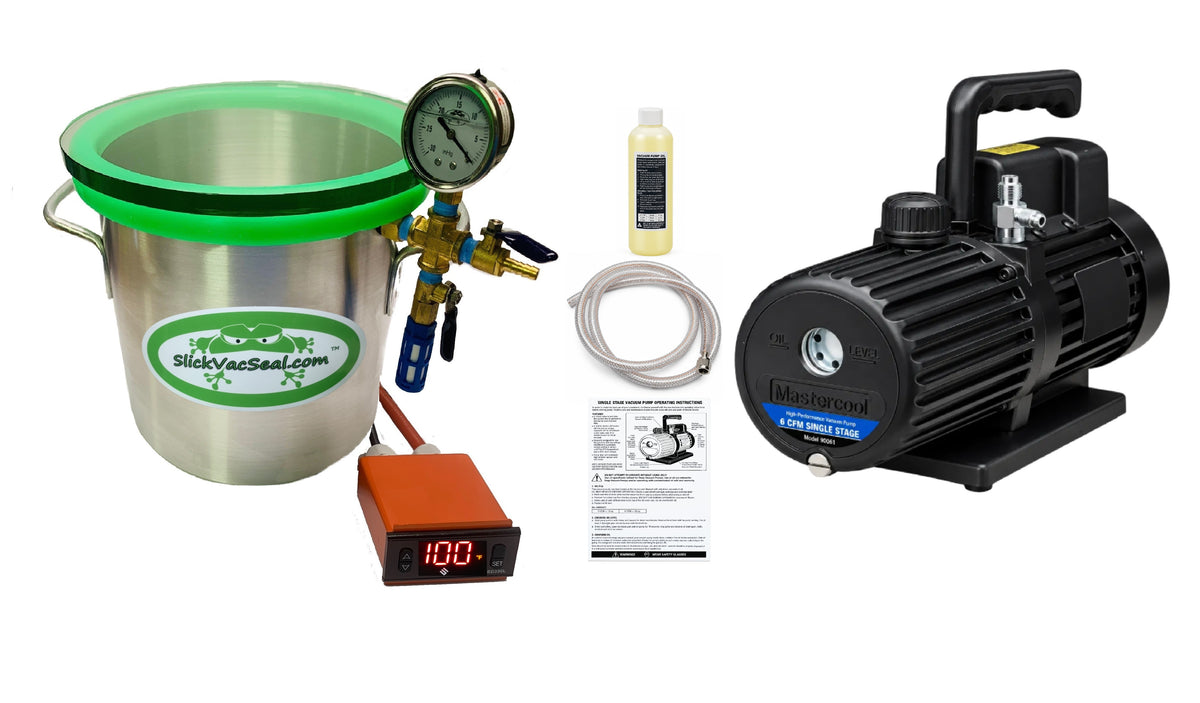

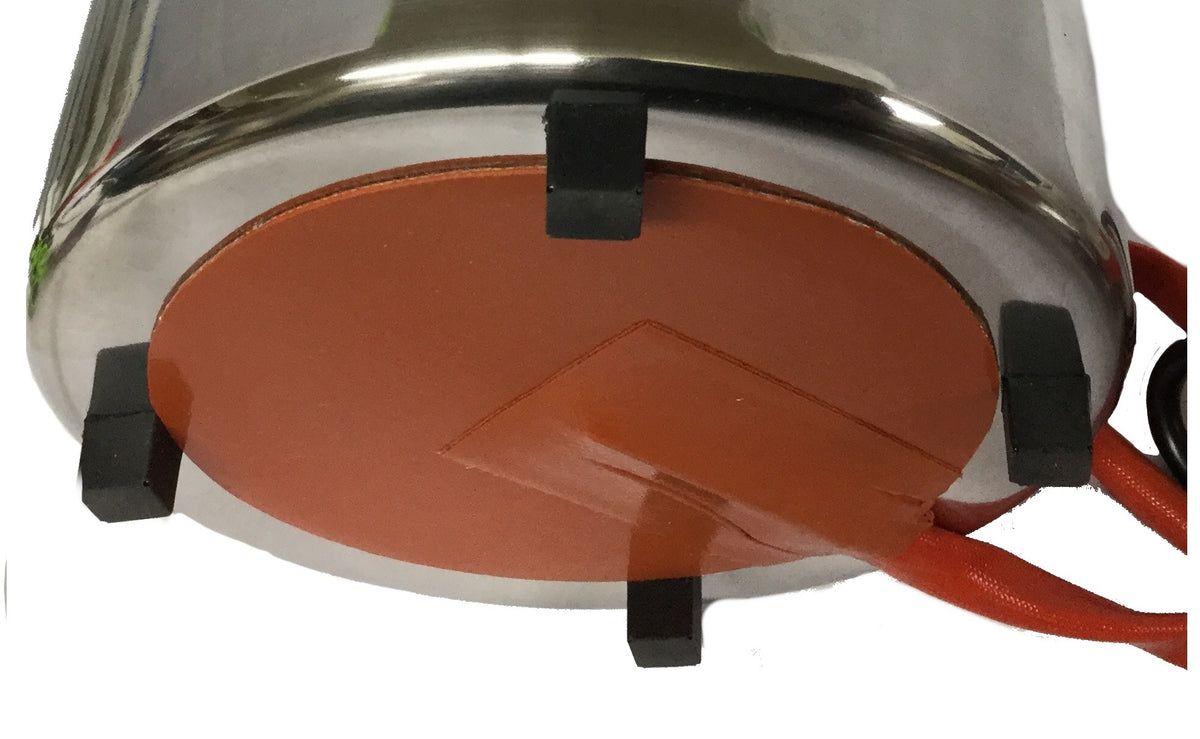

System: Vacuum Drying Oven + 6 CFM Mastercool Vacuum Pump
System: Vacuum Drying Oven + 6 CFM Mastercool Vacuum Pump
Aluminum Vacuum Chamber By SlickVacSeal |
|
Brand |
SlickVacSeal TM |
Assembly required |
Attach Inlet Air Filter, and Simple Vacuum Hose and Plumbing Connection. |

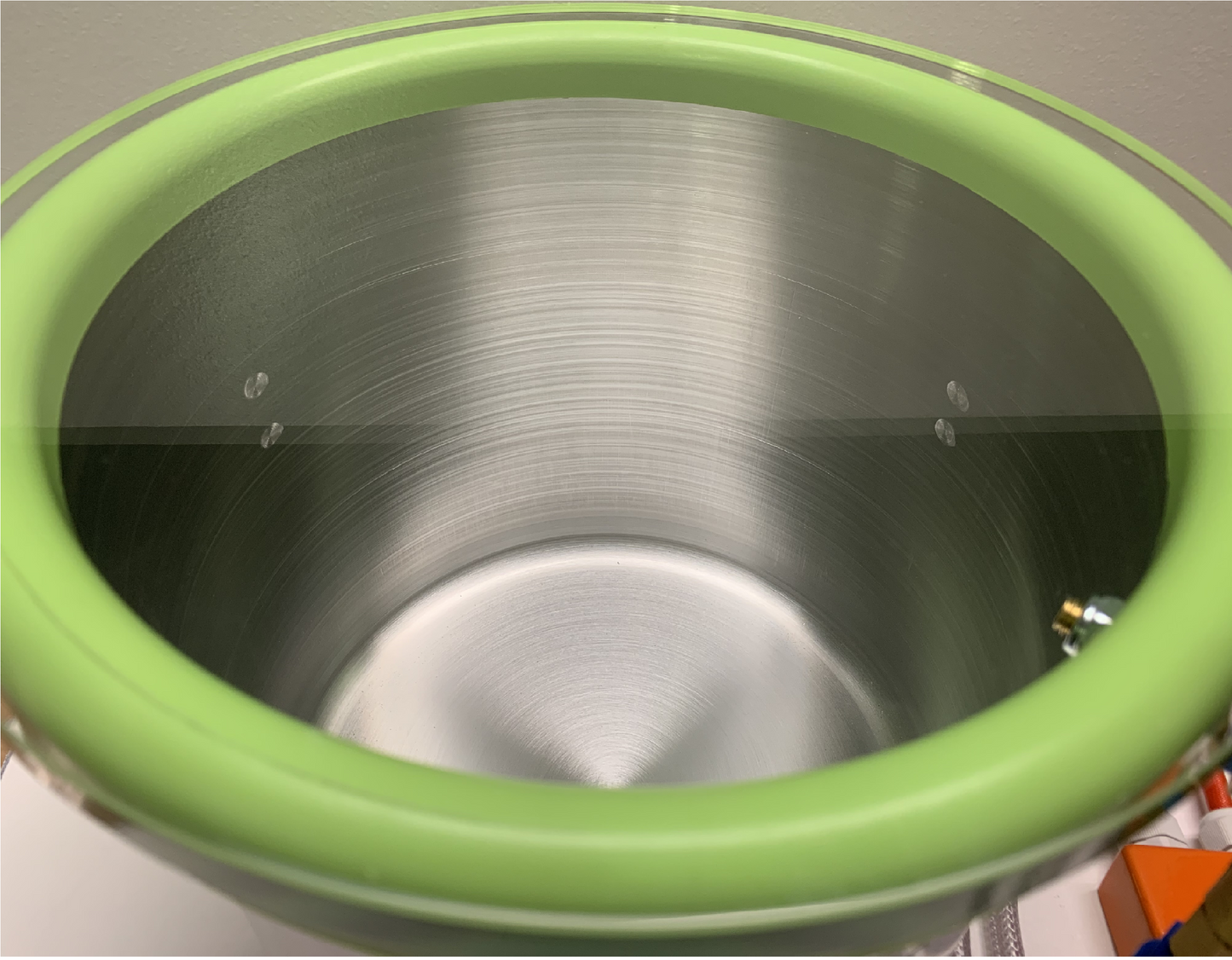

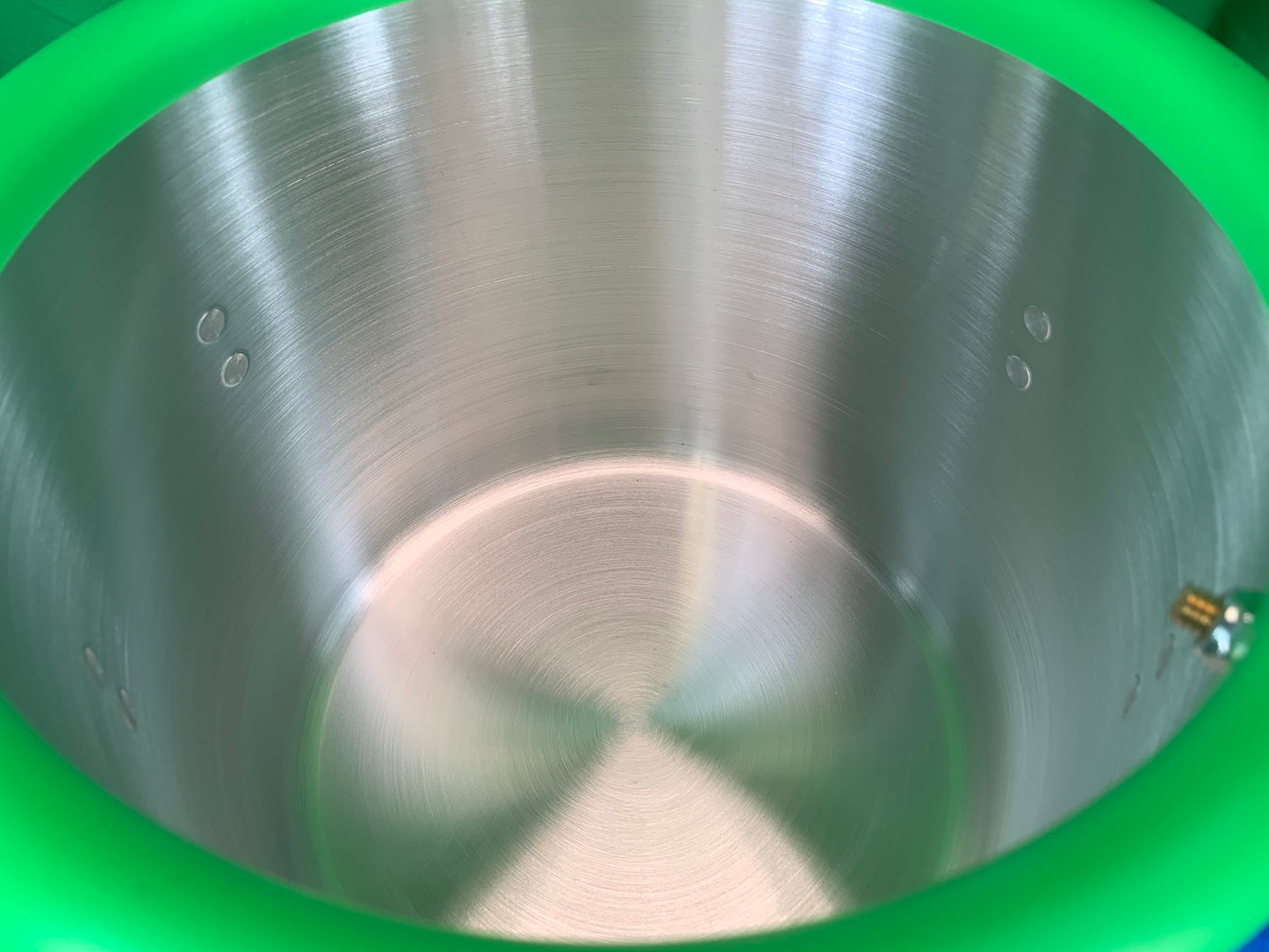

Body |
3 Gal: Heavy Duty Stainless Steel MADE IN THE USA 5 Gal: Heavy Duty Aluminum MADE IN THE USA |
Dimension |
3 Gal: 10" Inside Diameter And 9" Height 5 Gal: 12" Inside Diameter And 10" Height |
Lid |
Thick Tempered Glass |
Vacuum Gauge |
SlickVacSeal 0-30”Hg Liquid Filled Stainless Steel |
Seal |
Long Lasting MADE IN THE USA SlickVacSeal |
Max Operating Temperature |
160°F |
Max Vacuum @Sea Level |
29.9” Hg |
Ambient Temperature Range of operation |
50-160°F |
Inlet Air Filter |
50 Micron Air Filter |
Vacuum Hose Length |

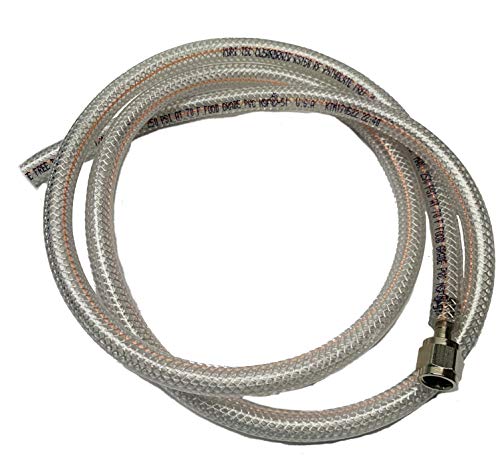

4 feet of Reinforced Vacuum Hosing Connect Directly To Vacuum Pump 1/4" SAE |

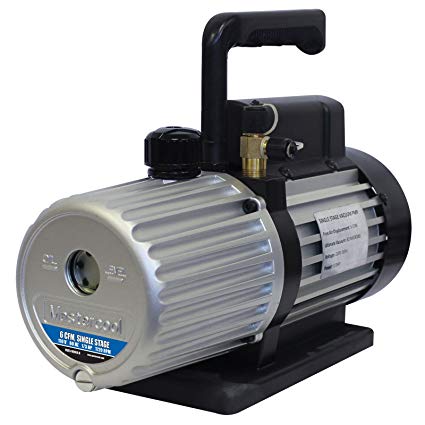

HIGH PERFORMANCE VACUUM PUMP BY MASTERCOOL
|
|
Flow Rate |
6 CFM |
Ultimate Vacuum |
29.9” Hg |
Stages |
Single Stage |
Power |
110V Standard US Outlet |
Motor |
1/3 HP |
Weight |
20 LBS |
Dimensions |
15”L x 6.5”W x 11”H |

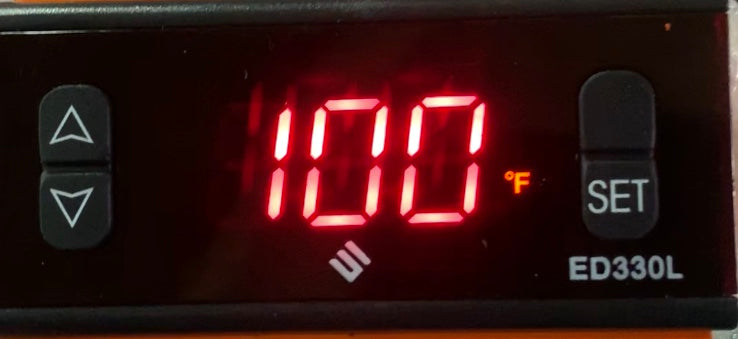

Click For Programing/Controller Info

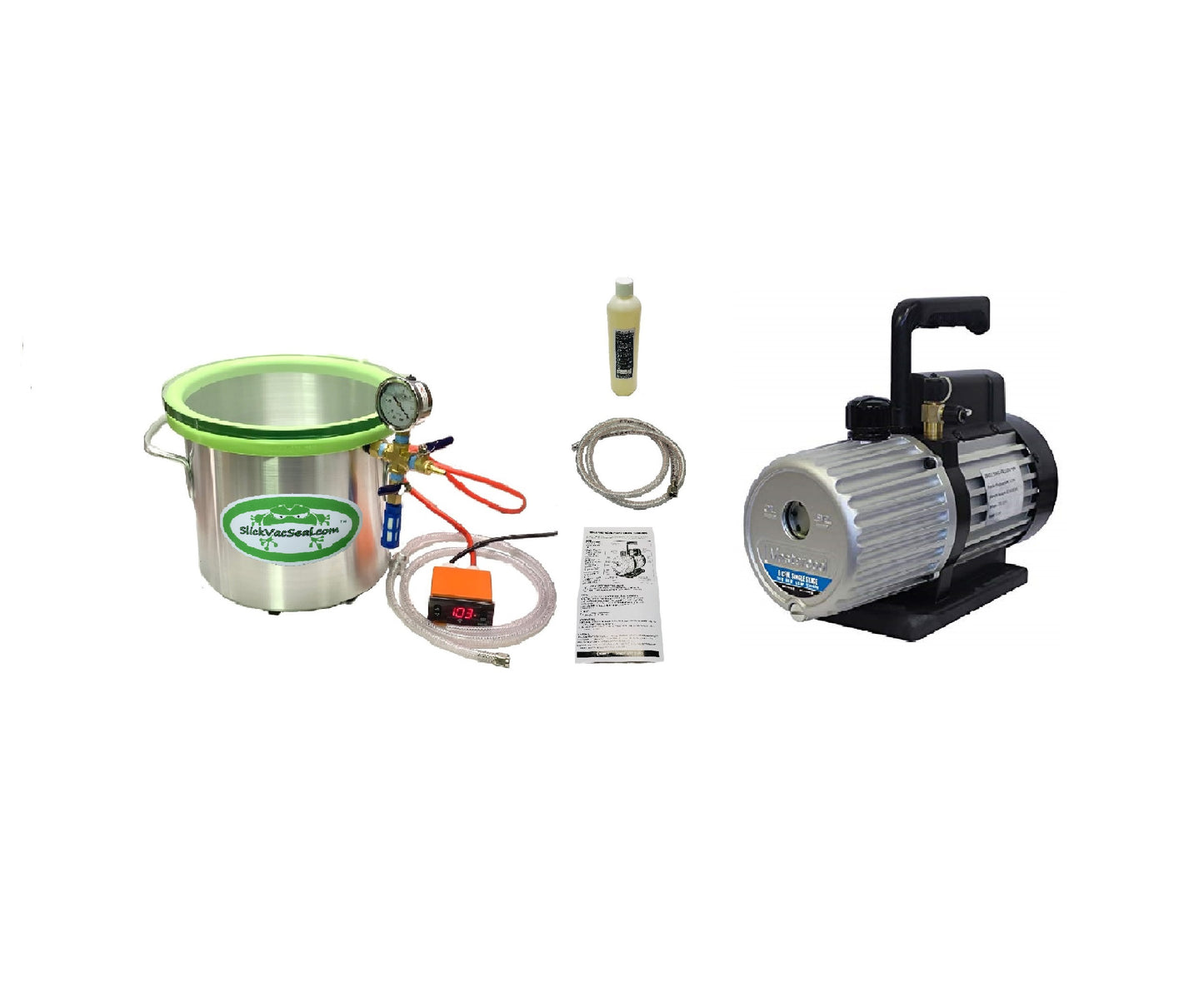

Package Contents:
1x: Vacuum Oven/ Chamber
1x Chamber Seal
1x: Lid
1x: Plumbing System
1x: 50 Micron Filter
1x: 4 feet of Reinforced Vacuum Hosing
1x: 6 CFM Mastercool High Performance Vacuum Pump

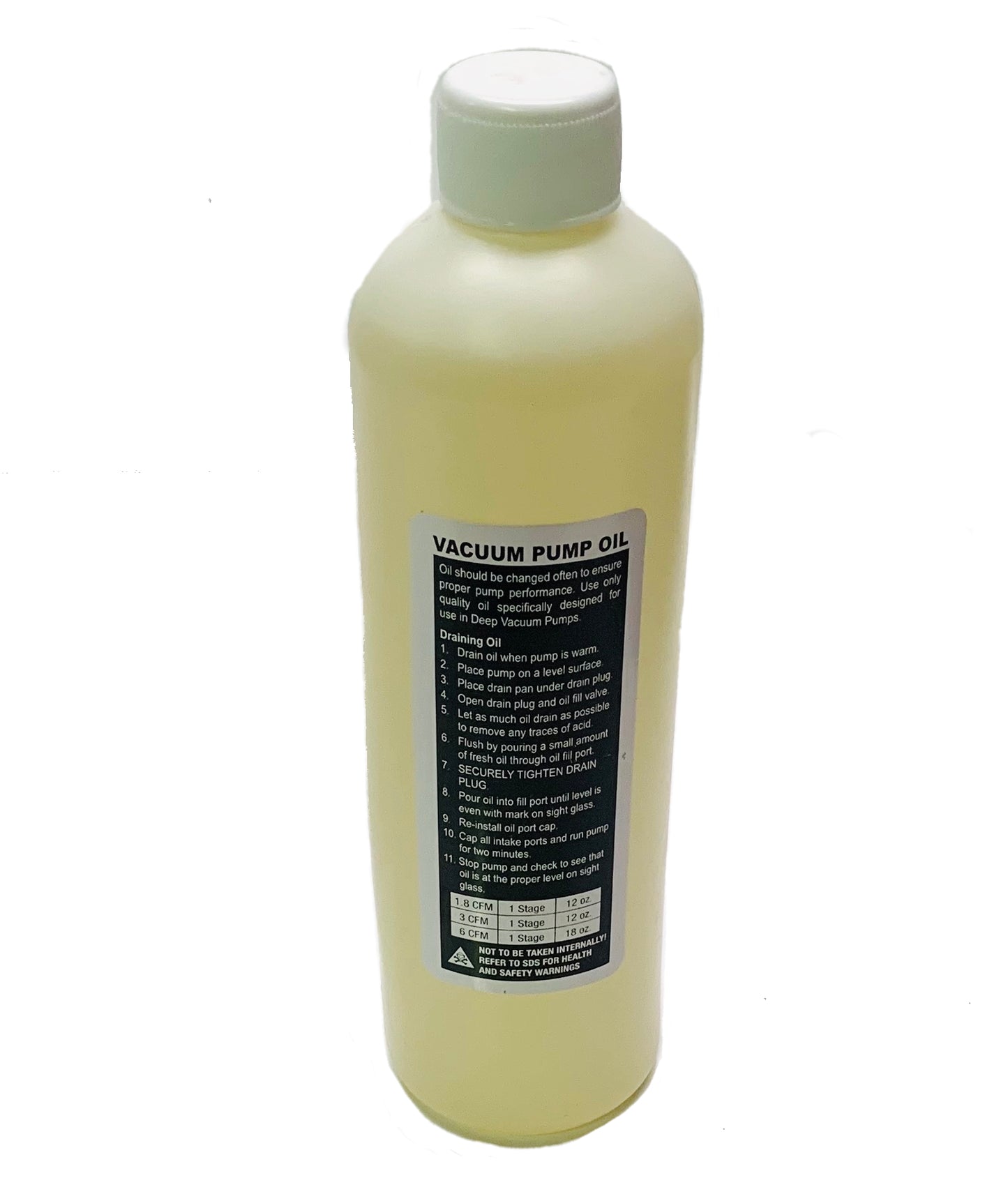

1x: Bottle of Vacuum Pump Oil

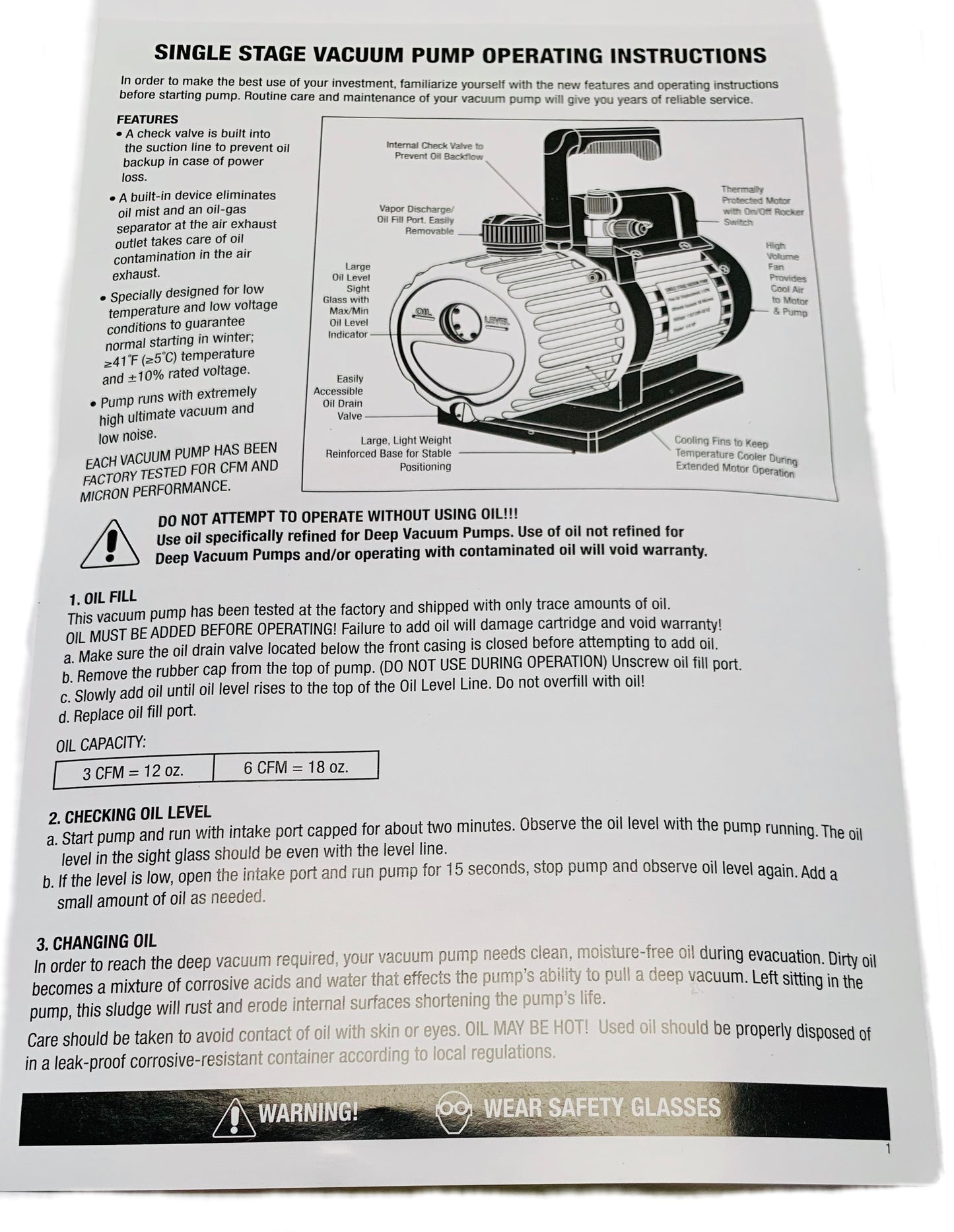

*Pump Warranty Card Must Be Filled Out And Sent To The Manufacture In Order To Be Valid.
