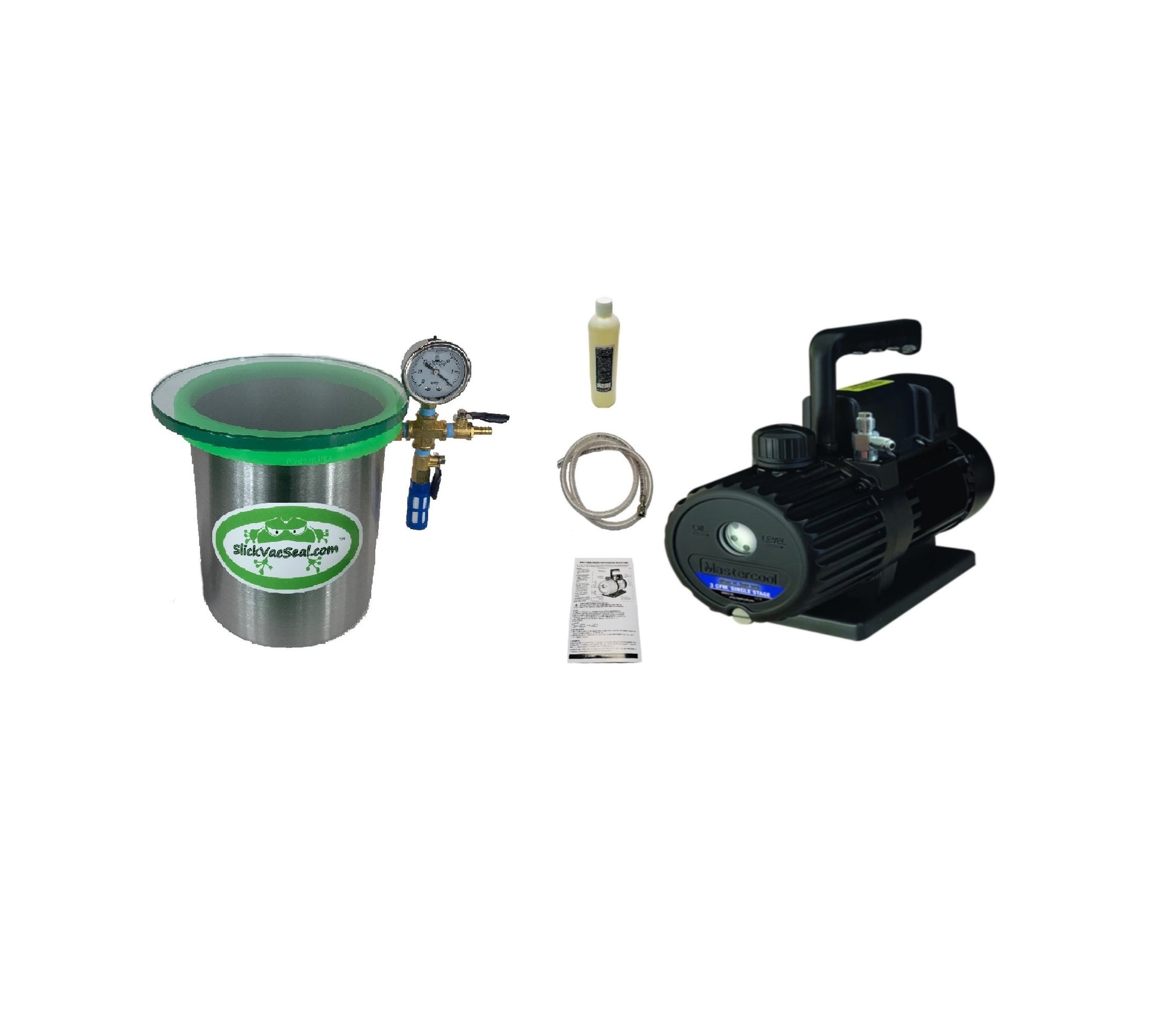

System: Stainless Steel Chamber + 3 CFM Mastercool Vacuum Pump

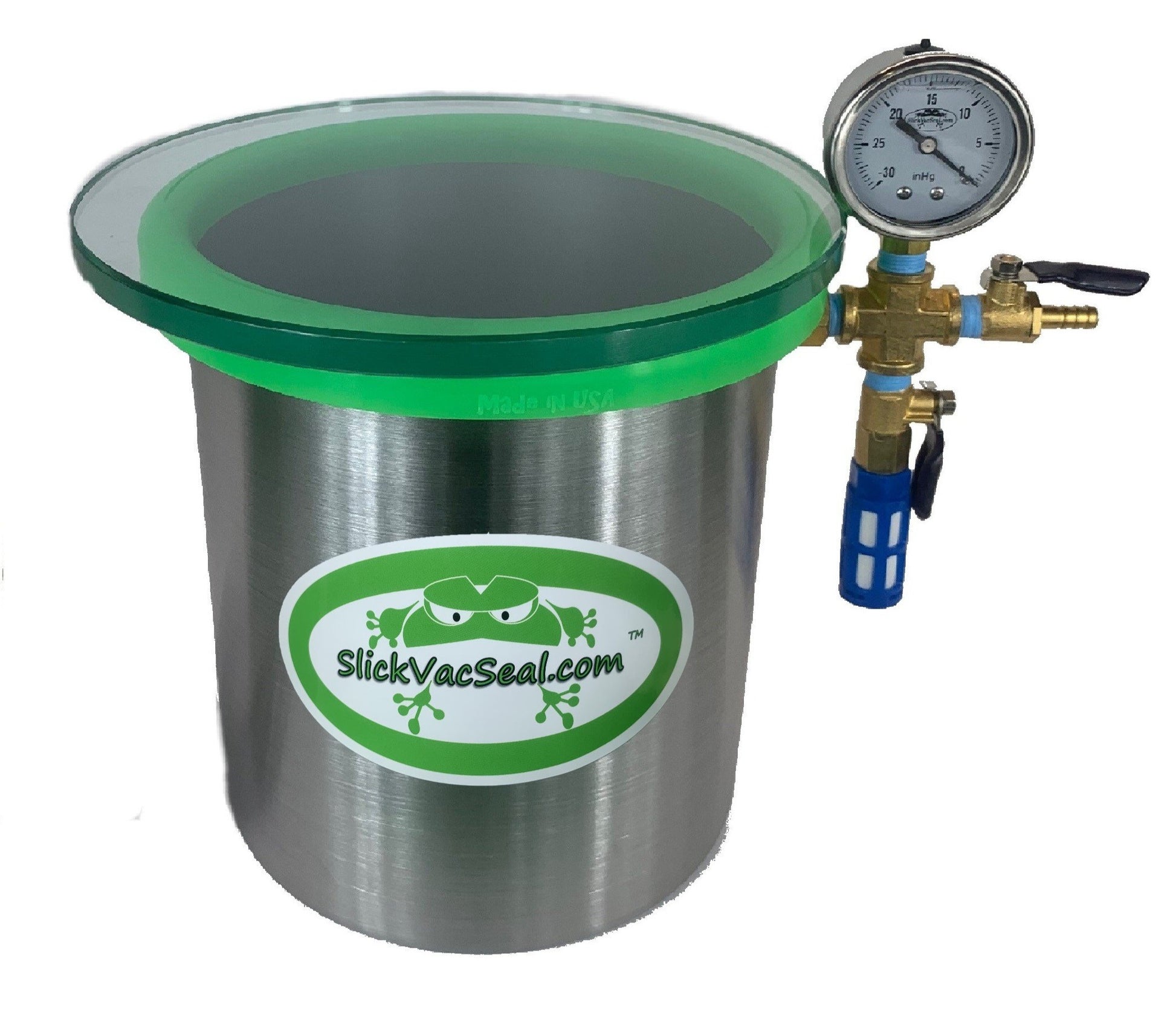

Stainless Steel Vacuum Chamber by SlickVacSeal

Brand

SlickVacSeal ^TM

Assembly required

Attach Inlet Air Filter,  and Simple Vacuum Hose and Plumbing Connection.

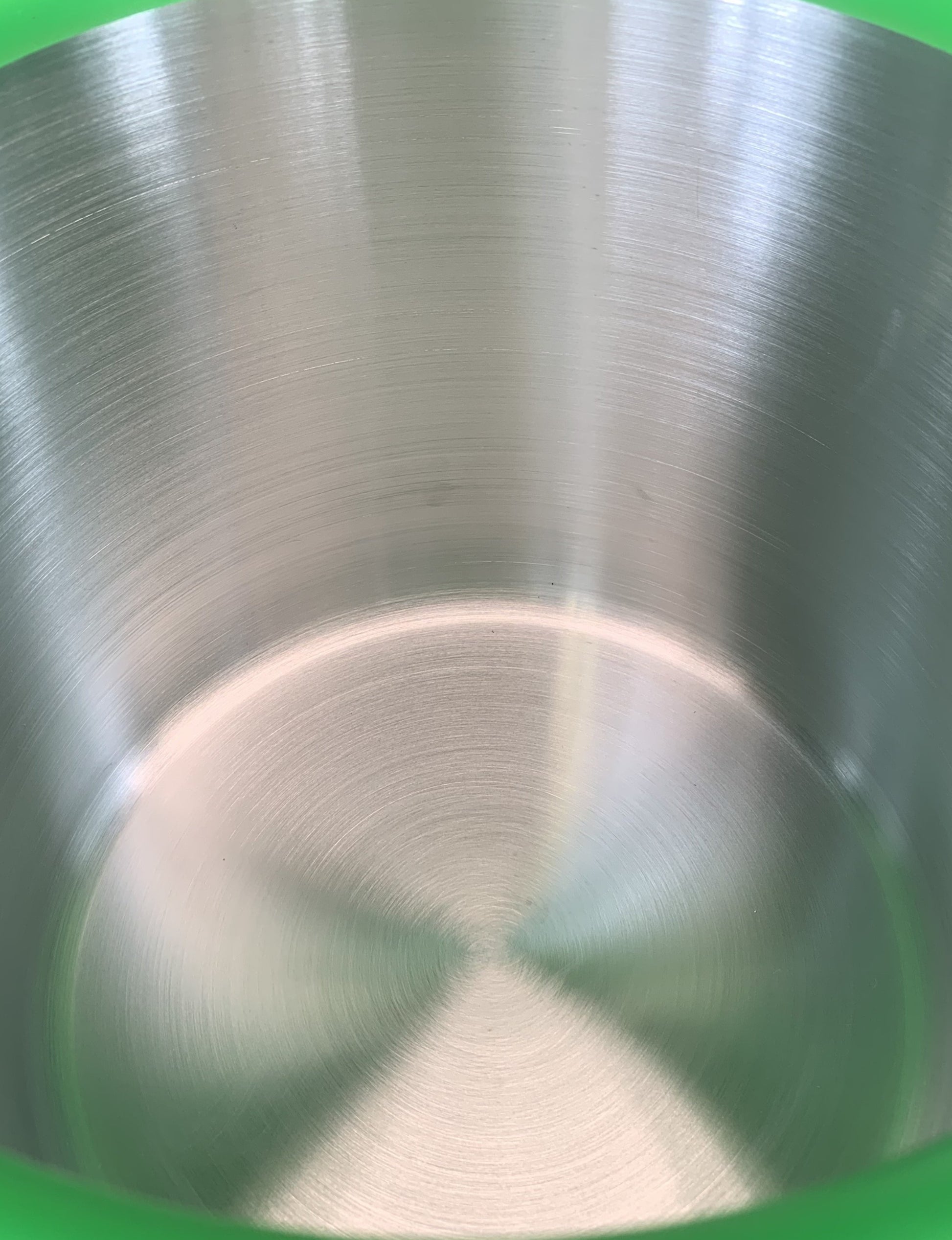

Body

Heavy Duty Stainless Steel

1.5 Gal: 7" Inside Diameter x 8" Height

3.0 Gal:  9" Inside Diameter x 10.5" Height

Lid

Thick Tempered Glass

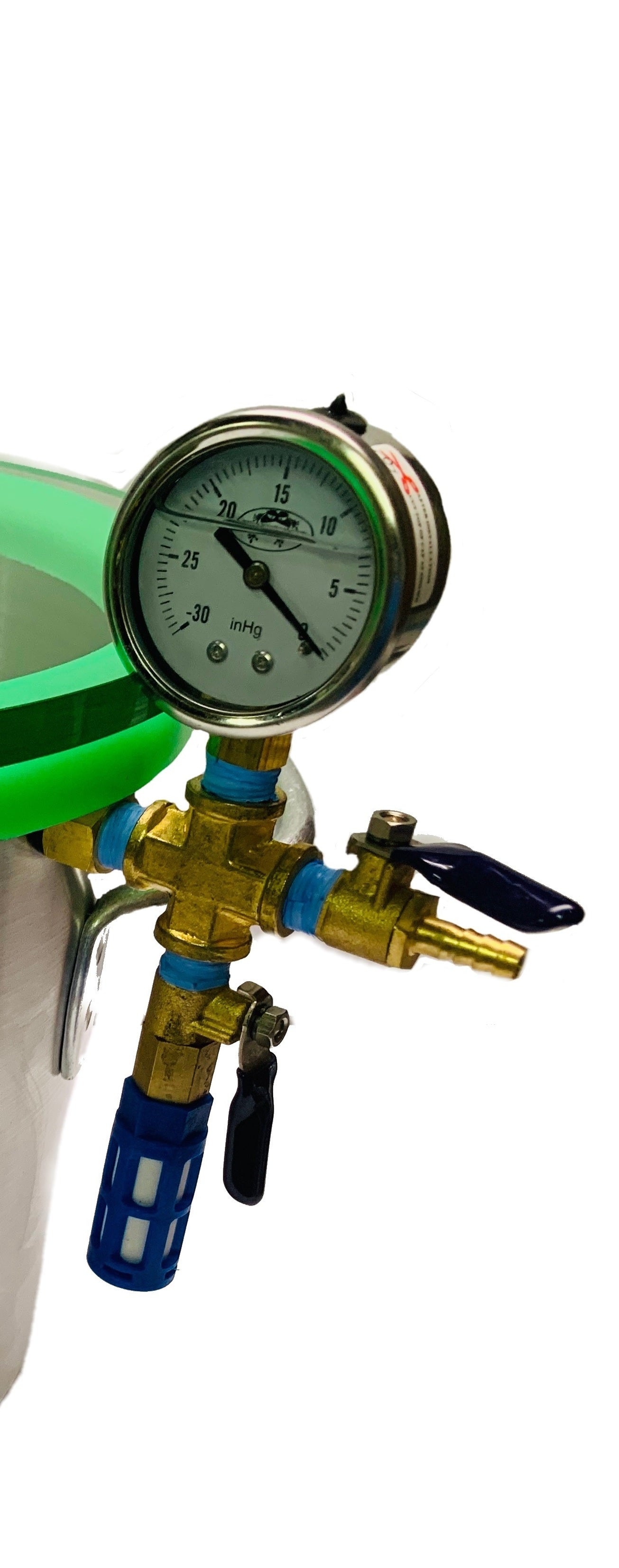

Vacuum Gauge

SlickVacSeal 0-30”Hg Liquid Filled Stainless Steel

Seal

Long Lasting MADE IN THE USA SlickVacSeal

Max Operating Temperature

160°F

Max Vacuum @Sea Level

29.9” Hg

Ambient Temperature Range of operation

50-160°F

Inlet Air Filter

50 Micron Air Filter

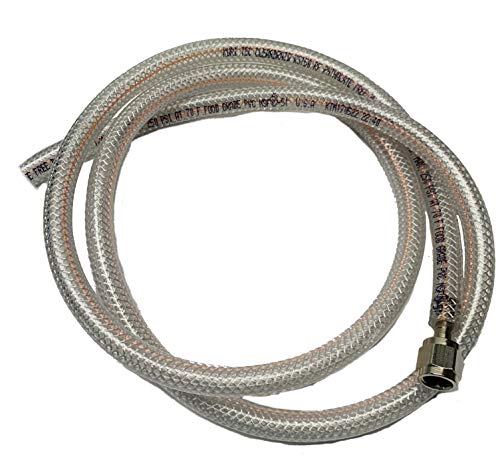

Vacuum Hose Length

4 feet of Reinforced Vacuum Hosing Connect Directly To Vacuum Pump 1/4" SAE

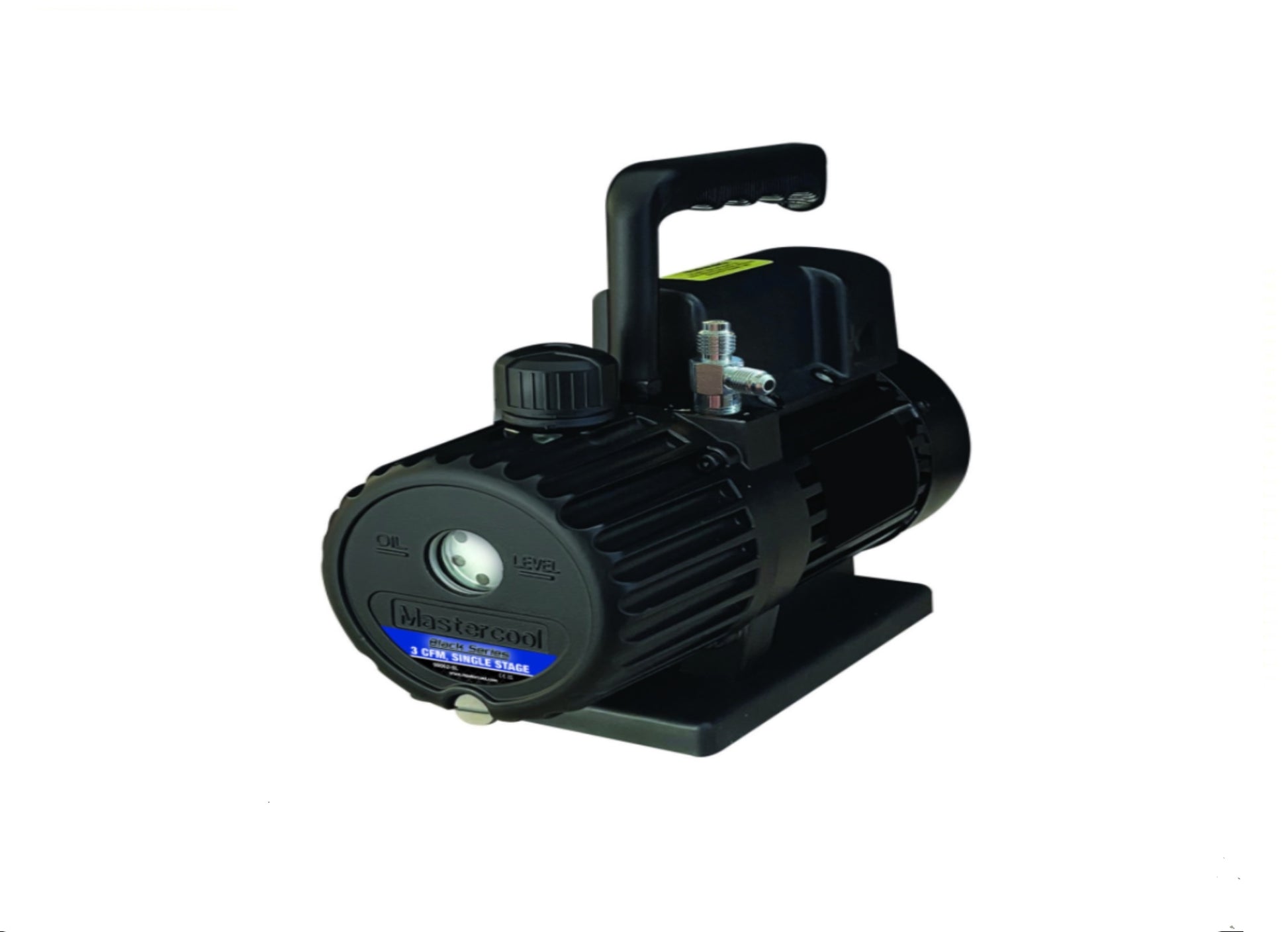

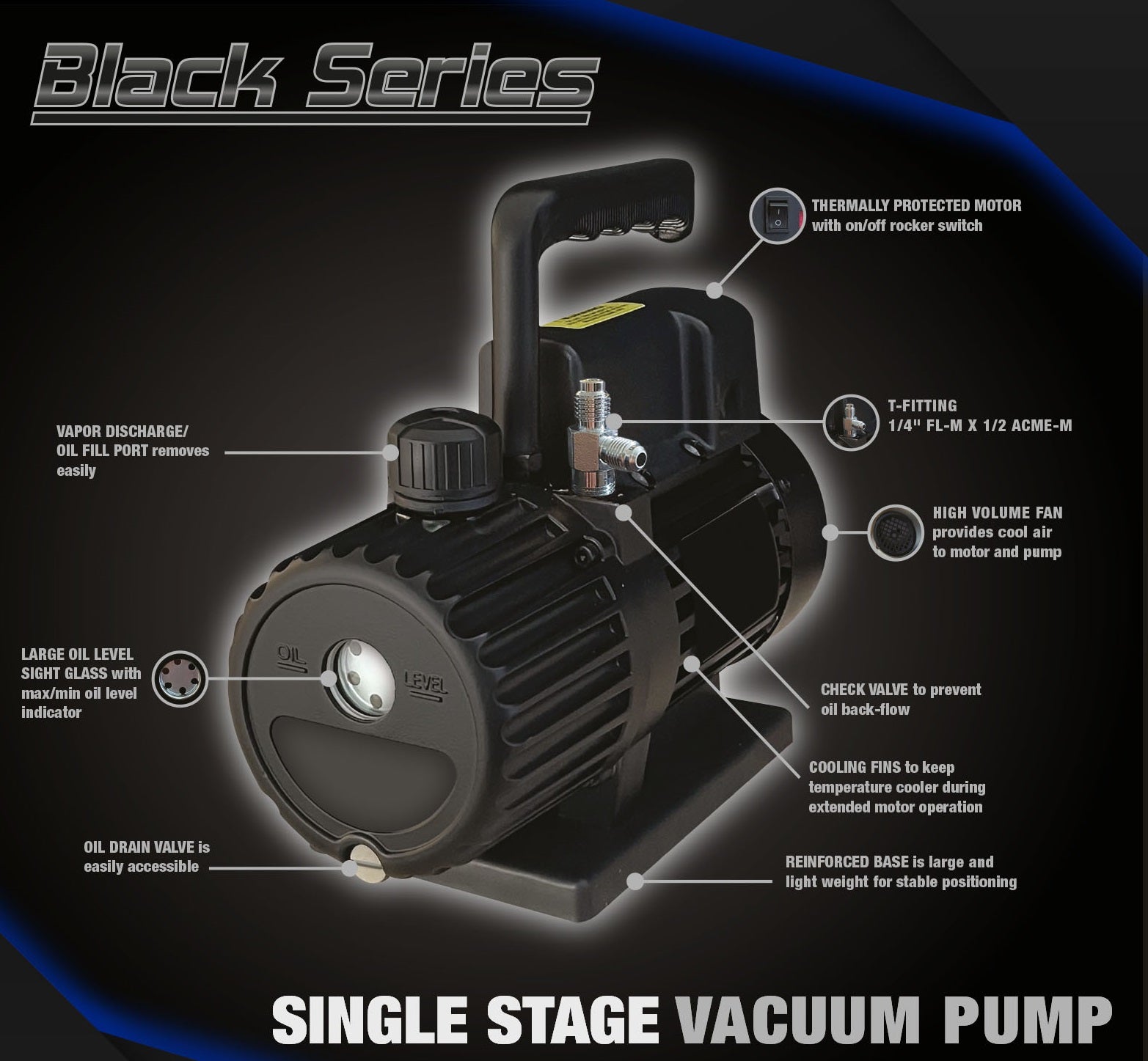

Flow Rate

3 CFM

Ultimate Vacuum

29.9” Hg

Stages

Single Stage

Power

110V Standard US Outlet

Motor

¼ HP

Weight

14 LBS

Dimensions

12”L x 6”W x 10.5”H
