System: Stainless Steel Chamber + 6 CFM Mastercool Vacuum Pump
System: Stainless Steel Chamber + 6 CFM Mastercool Vacuum Pump

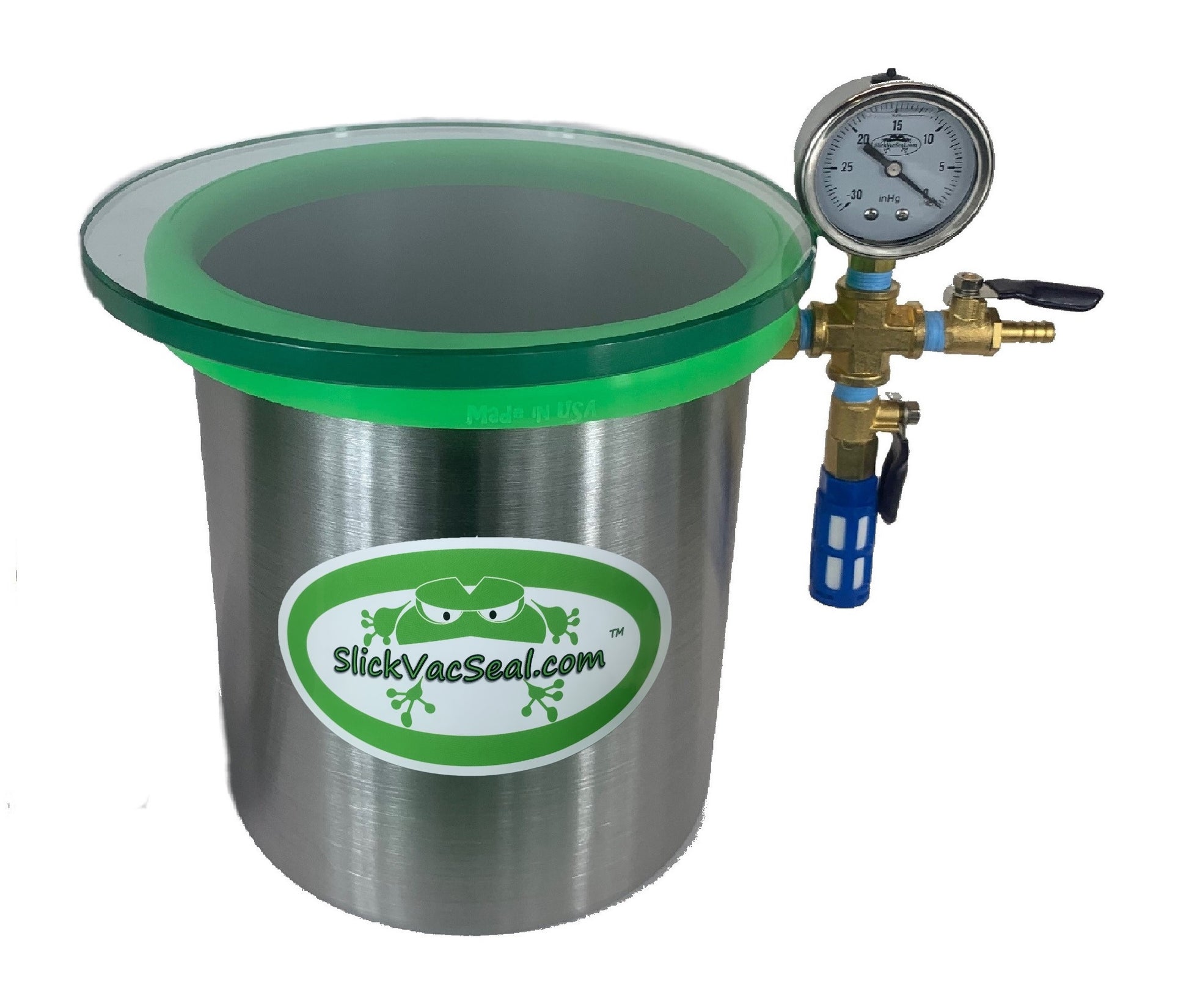

Stainless Steel Vacuum Chamber by SlickVacSeal |
|
Brand |
SlickVacSeal TM |
Assembly required |
Attach Inlet Air Filter, and Simple Vacuum Hose and Plumbing Connection. |
Body |
Heavy Duty Stainless Steel |
Dimension |
1.5 Gal: 7" Inside Diameter x 8" Height 3.0 Gal: 9" Inside Diameter x 10.5" Height |
Lid |
Thick Tempered Glass |
Vacuum Gauge |
SlickVacSeal 0-30”Hg Liquid Filled Stainless Steel |
Seal |
Long Lasting MADE IN THE USA SlickVacSeal |
Max Operating Temperature |
160°F |
Max Vacuum @Sea Level |
29.9” Hg |
Ambient Temperature Range of operation |
50-160°F |
Inlet Air Filter |
50 Micron Air Filter |
Vacuum Hose Length |
4 feet of Reinforced Vacuum Hosing Connect Directly To Vacuum Pump 1/4" SAE |

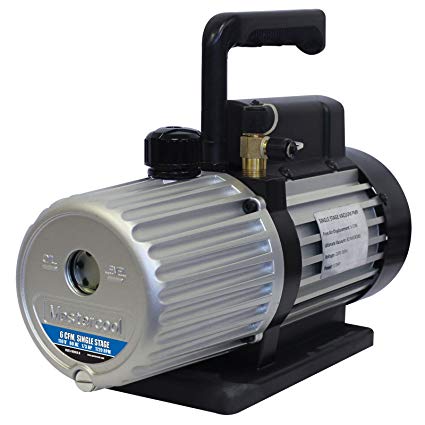

HIGH PERFORMANCE MASTERCOOL VACUUM PUMP
|
|
Flow Rate |
6 CFM |
Ultimate Vacuum |
29.9” Hg |
Stages |
Single Stage |
Power |
110V Standard US Outlet |
Motor |
1/3 HP |
Weight |
20 LBS |
Dimensions |
15”L x 6.5”H x 11” W |

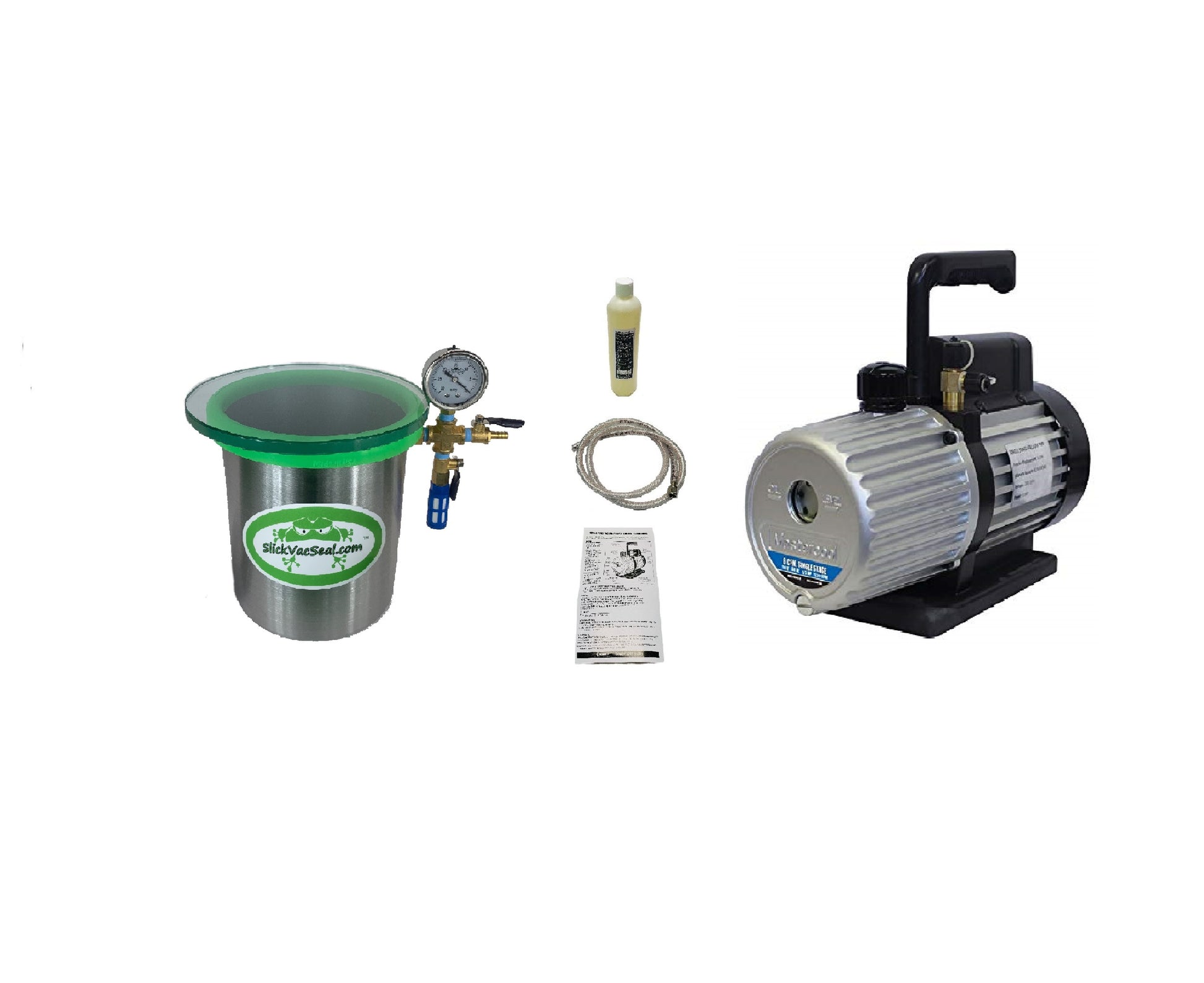

Package Contents:
1x: Stainless Steel Chamber
1x Chamber Seal
1x: Lid
1x: Plumbing System
1x: 50 Micron Filter

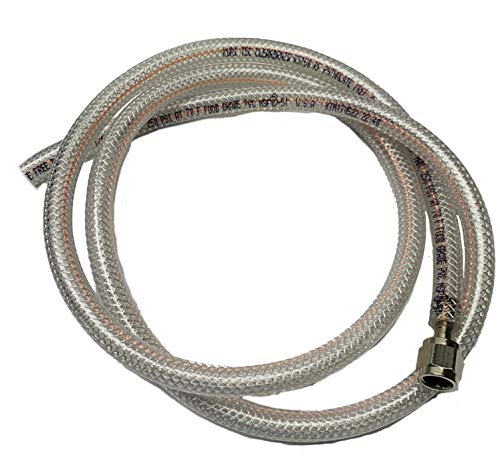

1x: 4 feet of Reinforced Vacuum Hosing
1x: 6 CFM Mastercool High Performance Vacuum Pump

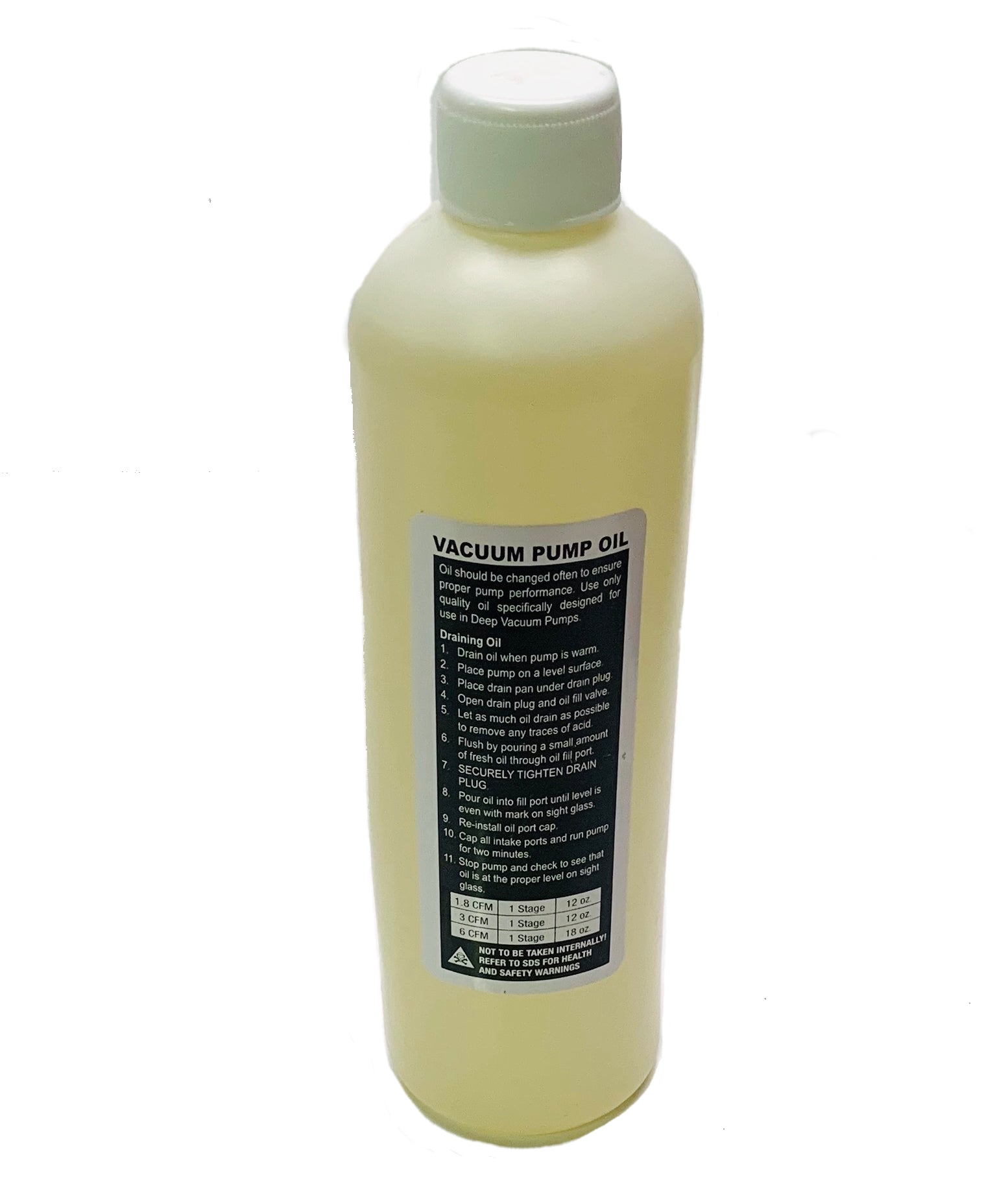

1x: Bottle of Vacuum Pump Oil
*Pump Warranty Card Must Be Filled Out And Sent To The Manufacture In Order To Be Valid.
